National Data Platform (NDP)

From zero to a federated, secure dataset

A guided demo of every component and how they work together

What is NDP?

A platform to publish, discover and share data across institutions.

• Each institution runs its own Endpoint (EP): its data catalog.
• EPs are federated: discovered and shared through a central registry.
• All with shared identity and permissions and, optionally, over a
  secure private network.

Key idea: distributed data, unified discovery.

Platform components

Piece	What it is for	How it looks
AAI (Keycloak)	Who you are (login, users)	Login screen
Affinities	Relationships between datasets, services and endpoints	Relationships web app
NDP-EP	Your catalog: datasets, resources, storage	Endpoint web app
Federation	Central registry of all EPs	Federation web app
Python library	Do the same from code / automate	Notebook / script
NetBird (bonus)	Secure private network between machines	Network dashboard

Component interactions

Component interactions — step by step

1. Sign in — the user authenticates through AAI (Keycloak), which also carries their role (viewer / writer / admin).
2. Use the Endpoint — with that token they publish and search in the NDP-EP, backed by CKAN (catalog) and MinIO / S3 (storage).
3. Register relationships — the EP registers its datasets and services in Affinities, a non-blocking graph of how data, services and endpoints relate.

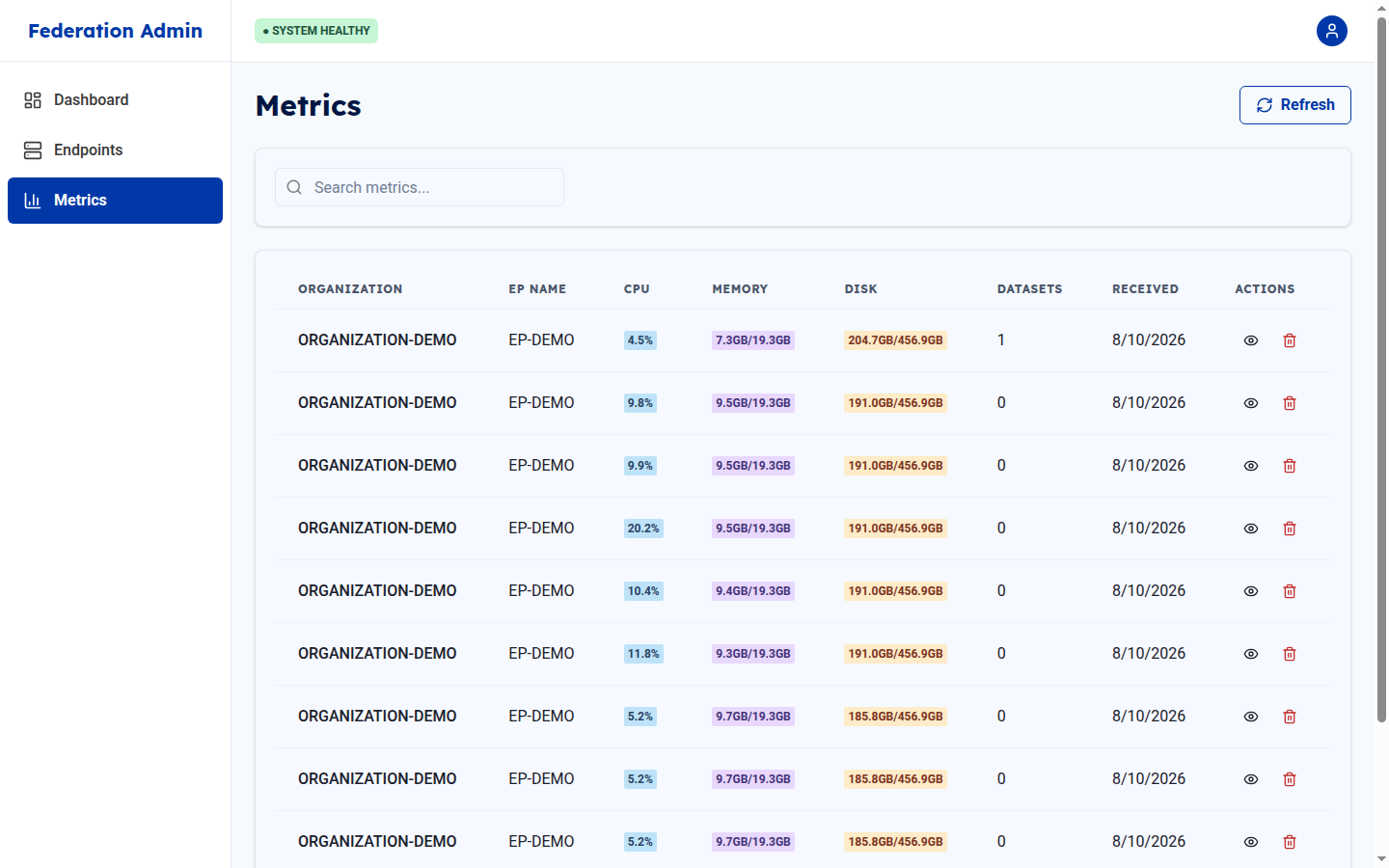

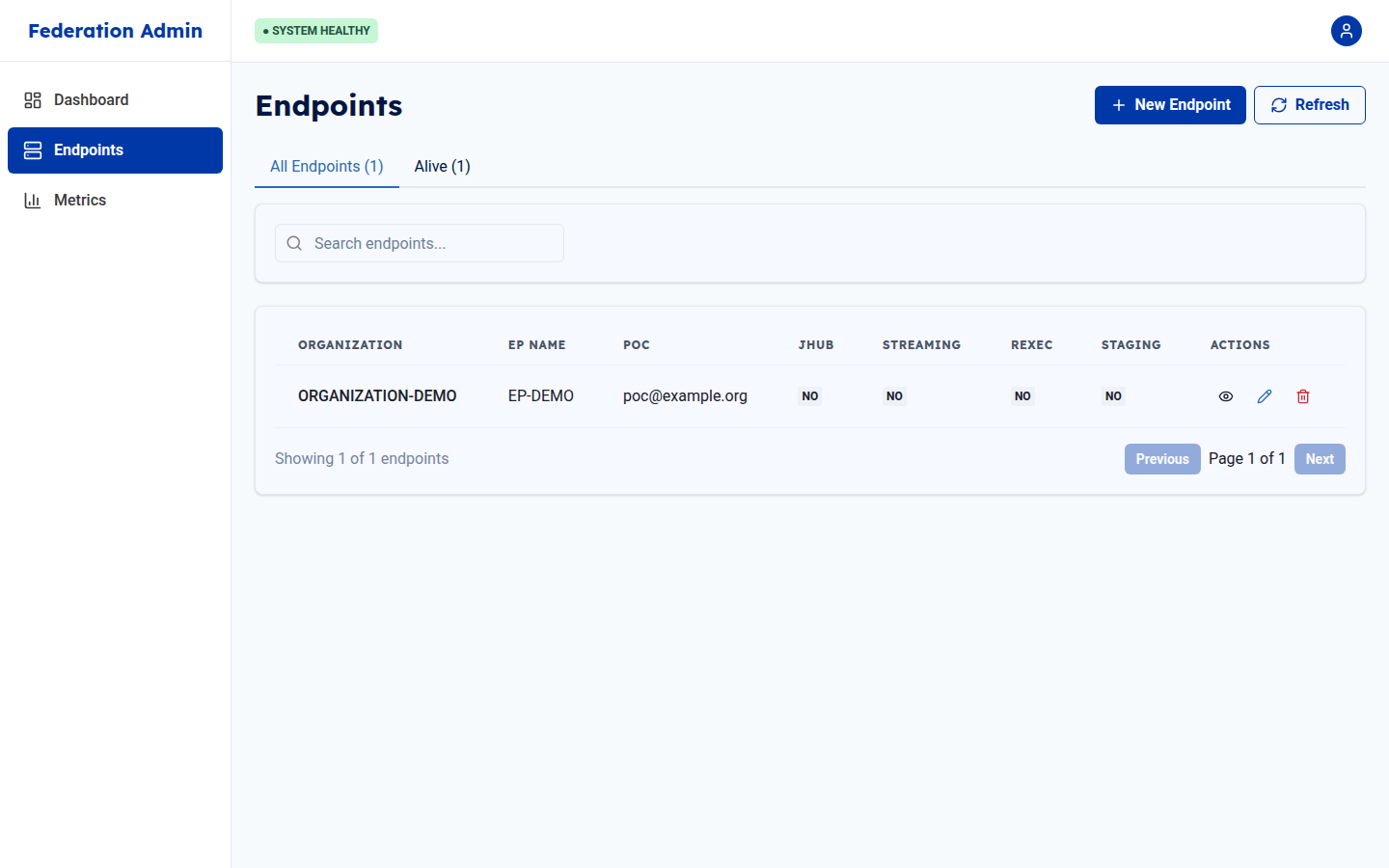

4. Federate — the EP reports to Federation (central registry + health & metrics).
5. Secure transport — all of it can run over a private, encrypted NetBird network.

Overview

A new user is granted access, publishes a dataset, performs the same tasks from
code, and the dataset becomes discoverable across the federation — all securely.

Steps:

1. Installation
2. Identity and permissions (sign in and get a role)
3. The Endpoint in action (publish and search from the web)
4. Automate with the Python library
5. Federation (the data is discovered elsewhere)
6. Bonus: secure network with NetBird

Step 1 — Installation

Two ways to install

Most users — the NDP-EP only
Run your own Endpoint and connect it to the National Data Platform, which
already provides identity (AAI), Affinities and Federation.
→ install one component.

Full stack — development / testing
Run all components locally, with no dependency on the central NDP.
→ install all components.

The common case is covered first; the full stack follows.

Before you install — prerequisites

Have these ready; the installer writes them into .env:

• AAI endpoint — the AAI …/information URL, so logins and roles work.
• Catalog backend — a MongoDB (Compose can start it) or a reachable CKAN instance with an admin API token.
• EP_UUID — required only when using Affinities or per-EP roles (group:<EP_UUID>:…). It is the Endpoint's uid in Affinities, used as AFFINITIES_EP_UUID. → see appendix Obtaining the EP_UUID.
• Object storage — optional, only for S3 features.

In the common case, the platform operators provide the AAI endpoint and, if
applicable, the EP_UUID.

Install the NDP-EP (the common case)

For system administrators. Installation involves Docker, networking and
environment configuration — it should be done by someone with sysadmin skills.

git clone https://github.com/national-data-platform/ep-api.git
cd ep-api
cp example.env .env      # configure your deployment
docker compose up -d     # the Endpoint only

The CKAN backend requires an existing, reachable CKAN instance and an administrator API token (CKAN_API_KEY). The MongoDB backend has no such prerequisite.

Run only the Endpoint, or add local backends with Compose profiles (next slide).

.env variables are explained in docs/configuration.md (template: example.env).

Compose profiles — core backends

docker compose --profile <name> up -d — combine as many as you need:

Compose profiles — extras

What you operate vs. what the platform provides

You operate (your Endpoint)	Shared by the platform
NDP-EP — API + web UI	AAI — identity & roles
Catalog database — CKAN or MongoDB	Affinities — relationship registry
Object storage — MinIO / S3 (optional)	Federation — registry & discovery

Full stack (development / testing)

Only if you want the whole system locally

Startup order (full stack)

1) AAI (Keycloak)      → identity first, everything depends on it
2) Affinities          → relationships (data · services · endpoints)
3) Federation          → central registry
4) NDP-EP (+ backends)  → catalog, connects to AAI and Federation
        backends: CKAN · MongoDB · MinIO (S3 storage)

Each component starts the same way: enter its folder and docker compose up -d.

1) Start AAI (identity)

git clone https://github.com/sci-ndp/ndp-keycloak-aai-old.git
cd ndp-keycloak-aai-old
cp .env_template .env        # set admin user/password + domain
# place fullchain.pem & privkey.pem in SSL/certificates/  (TLS)
docker compose up -d --build

What you will see: the Keycloak admin console and the NDP login screen.

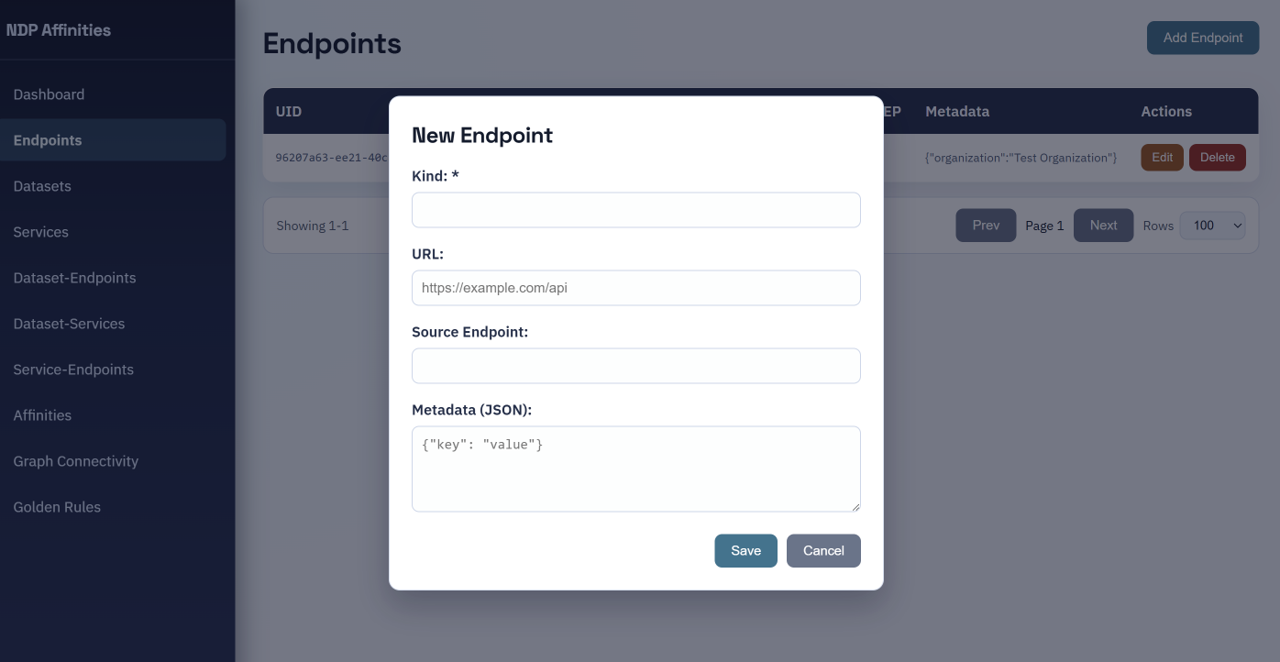

2) Start Affinities (relationship registry)

git clone https://github.com/sci-ndp/ndp-affinities.git
cd ndp-affinities
cp .env.example .env         # optional: customize DB user/password
docker compose up -d

What you will see (default URLs):

• API: http://localhost:8000/docs

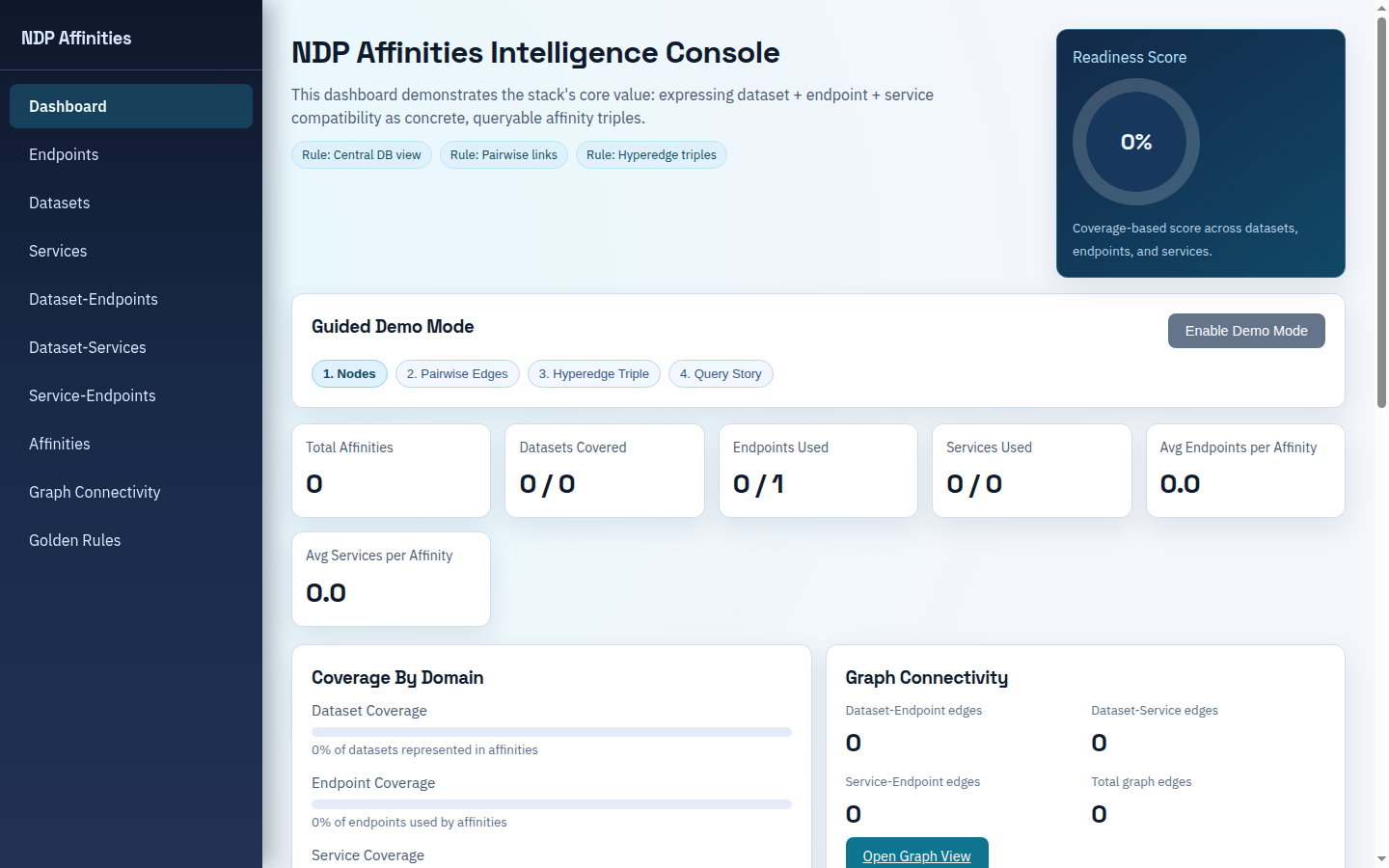

• Affinities web app: http://localhost:3000
• Database admin (pgAdmin): http://localhost:5050

3) Start Federation (central registry)

git clone https://github.com/sci-ndp/ndp-federation.git
cd ndp-federation
cp .env.example .env         # set ADMIN_PASSWORD
docker compose up -d

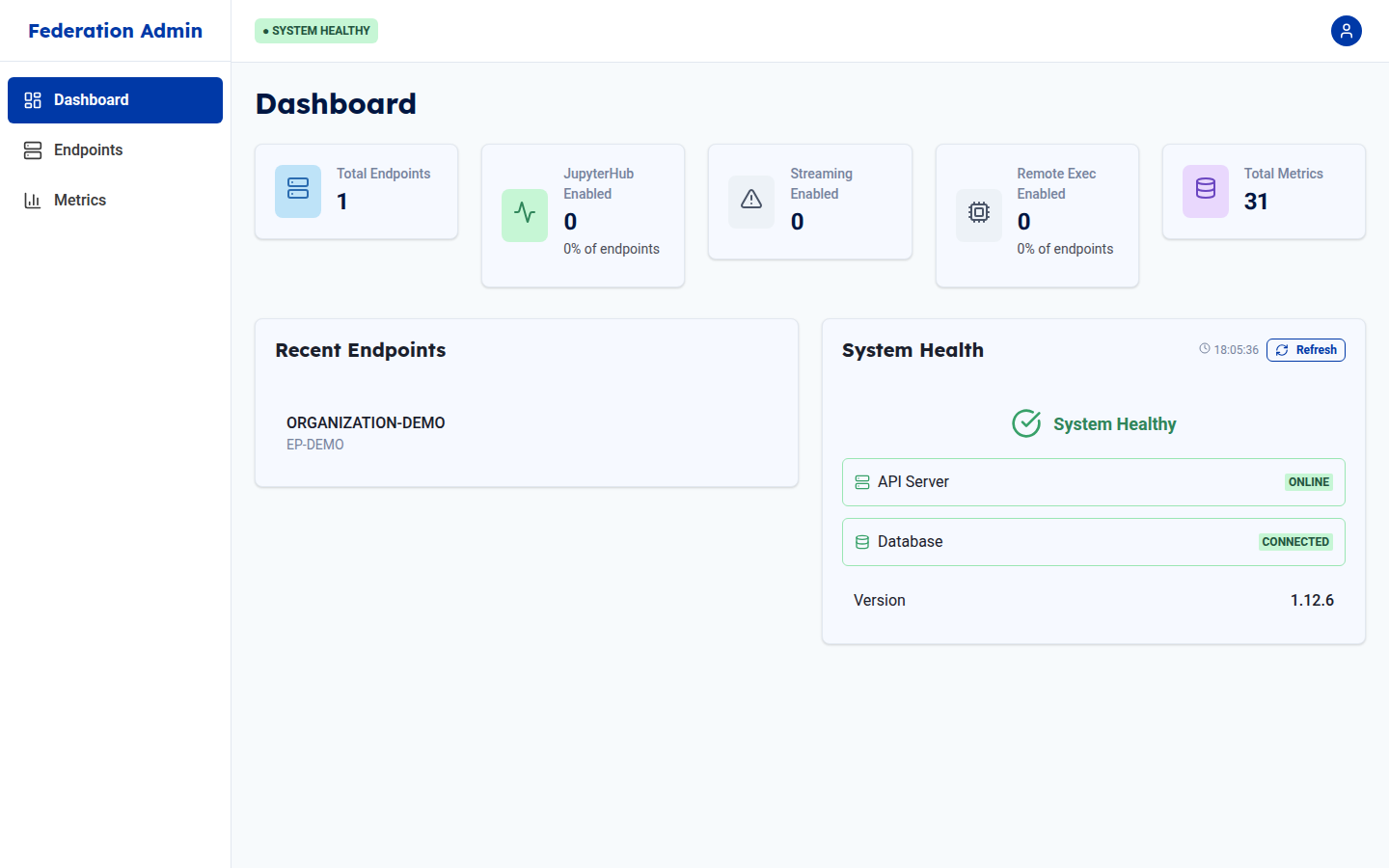

What you will see:

• Web: http://localhost:8020/ui/
• API & docs: http://localhost:8020/docs

4) Start the NDP-EP (+ backends)

Identical to the common-case install. Configure .env to reference the local
AAI, Affinities and Federation instances, and start the data backends with a
Compose profile.

docker compose --profile full up -d    # Endpoint + MongoDB + MinIO + Kafka

What you will see: the Endpoint web app at …/ep-api/ui/, now wired to your local stack.

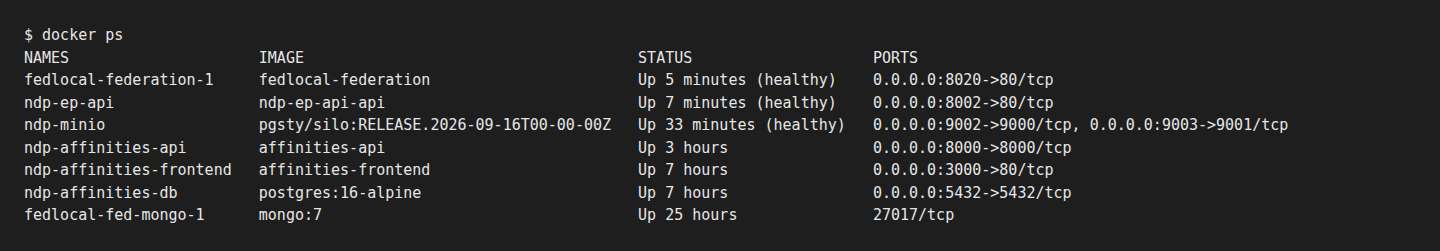

Check: everything is up

docker ps        # all containers "Up / healthy"

The NDP-EP is now reachable two ways:

• Web UI — …/ep-api/ui/
• HTTP API — …/ep-api/ (interactive docs at …/ep-api/docs)

Step 2 — Identity and permissions

A user signs in and gets a role

Bootstrap the first admin

The Endpoint has no user store — identity and roles come from AAI (Keycloak).
How the first admin is created depends on the deployment:

• NDP infrastructure (common case) — register your Endpoint through the NDP
  platform's onboarding process. It provisions the stack and your admin access;
  the platform operators manage identity.
• Full stack (self-hosted) — you assign the admin role yourself in your own
  Keycloak (next slide).

Bootstrap the first admin — full stack

Self-hosted only. In your Keycloak (realm NDP) — granting roles from the EP UI
or the AAI API requires an existing admin, so the first one is set here:

1. Create the user and set a password.
2. Assign the realm role ndp_admin (platform-wide), or group:<EP_UUID>:admin for this Endpoint only (EP_UUID → see appendix Obtaining the EP_UUID).

That user can then sign in and manage everyone else via the AAI API / EP.

Where users come from (AAI)

Depends on the deployment:

• NDP infrastructure (common case) — users are existing nationaldataplatform.com accounts; they sign in with their NDP identity. You do not create them.
• Full stack (self-hosted) — create them in your own Keycloak (Users → Add user → set password). → see appendix Creating a user — Keycloak.

A user alone cannot publish anything yet — they still need a role.

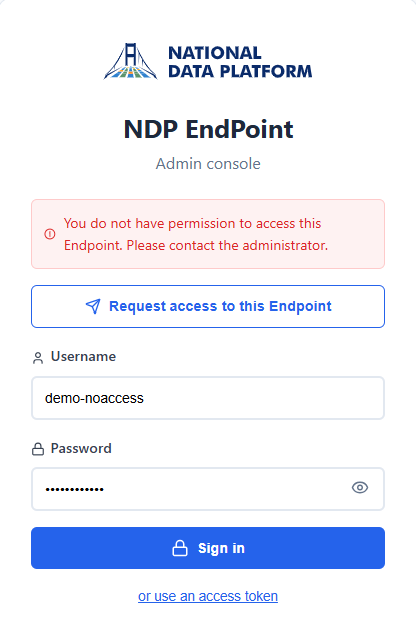

Requesting access (user)

A new user has no role, so the Endpoint denies access — but offers a
Request access form with an optional justification.

Requires ENABLE_ACCESS_REQUESTS=True.

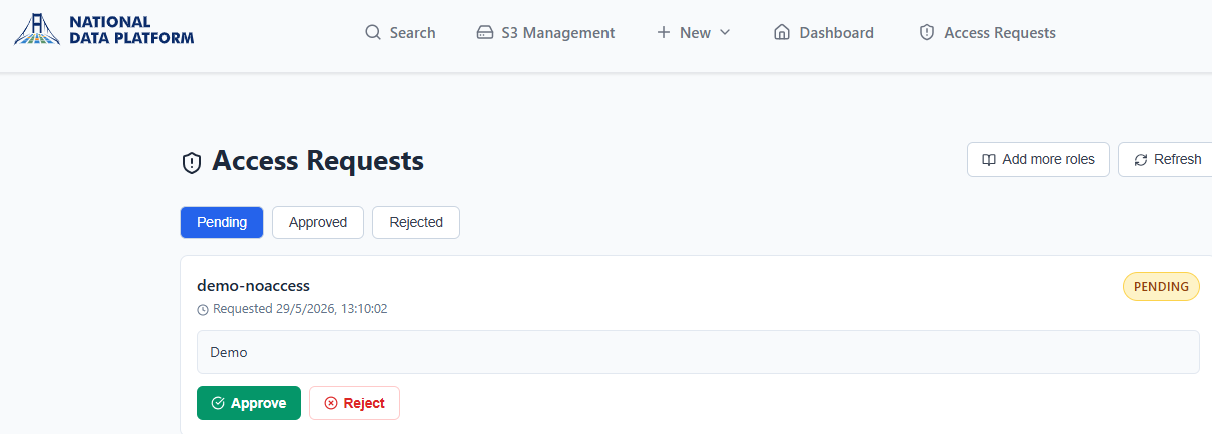

Approving access (admin)

On the Access Requests page, an admin reviews pending requests and approves
each with a tier — Viewer, Writer or Admin — or rejects it.

Approval assigns the role; the user re-logs in to pick it up.

The three roles

Roles come from AAI and are hierarchical (each tier includes the ones below):

Role	Can do
Viewer	View and search data. Read-only.

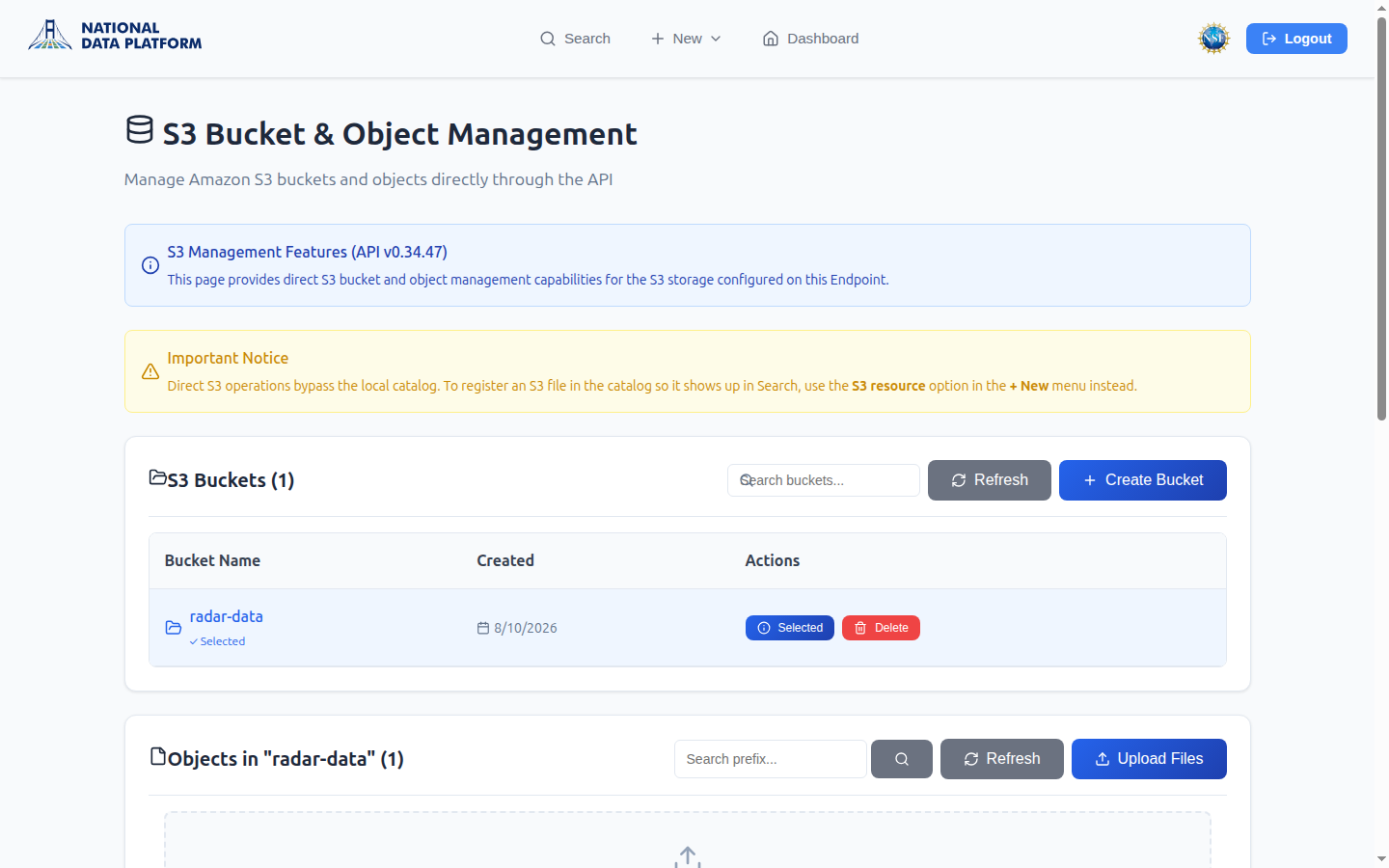

Writer	The above + create/edit datasets, resources, and S3 management.
Admin	All of the above + administration (dashboard, access requests).

With no role assigned, a user can only see public data. Secure by default.

Step 3 — The Endpoint in action

Search, publish and manage from the web

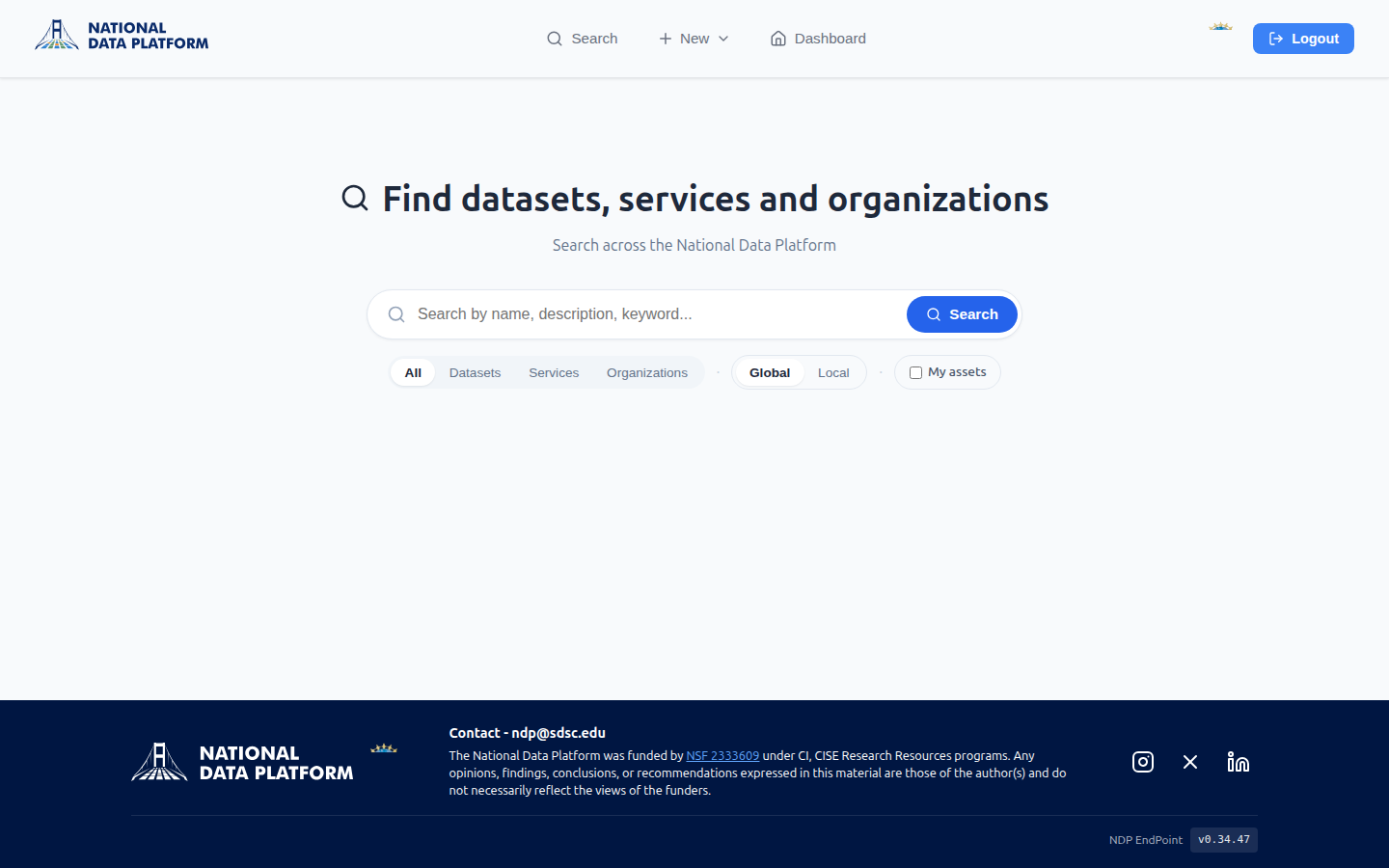

Search — the landing page

The home page is Search, available to everyone (including viewers).
Free-text search across name, description and keywords.

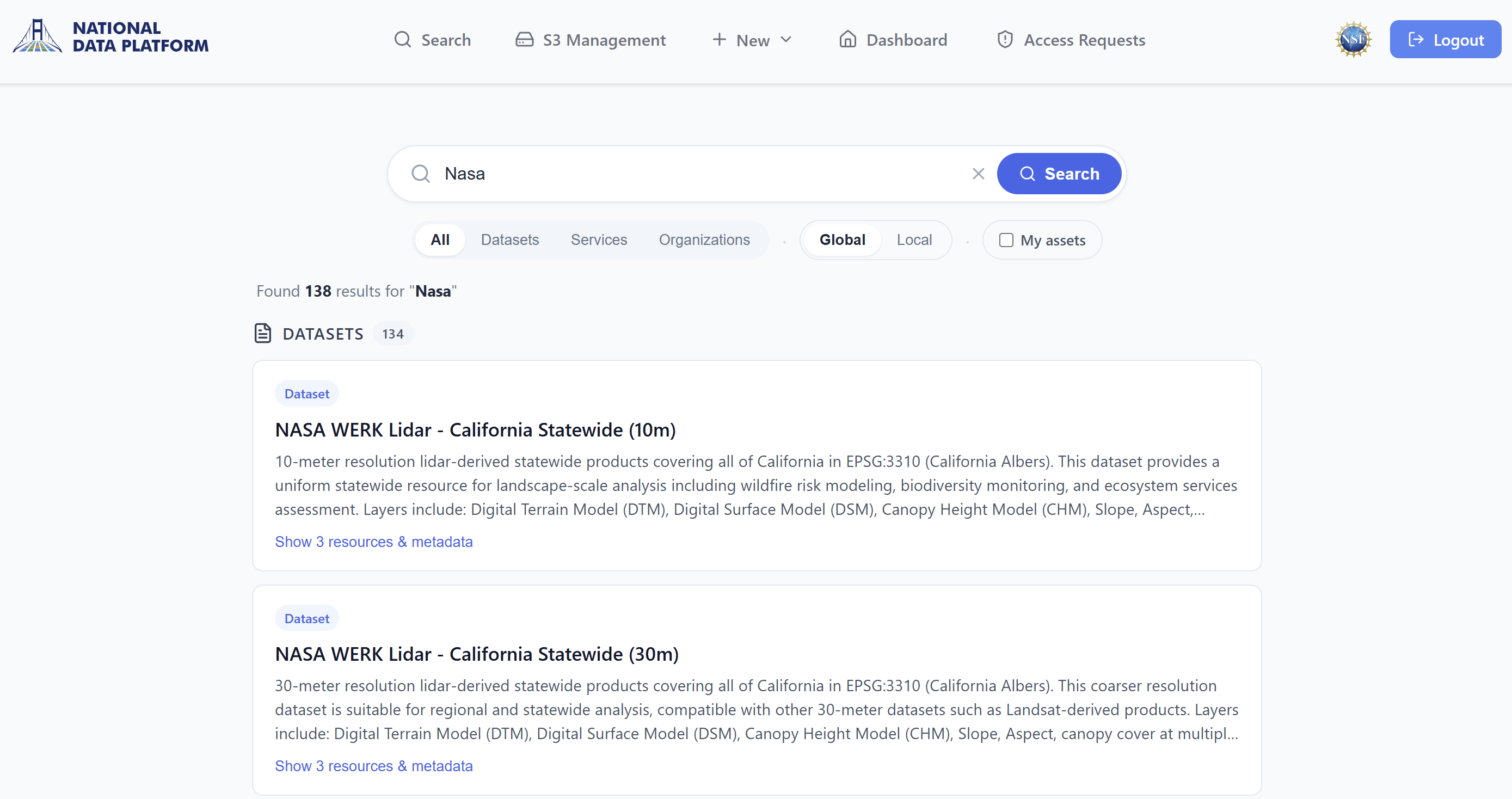

Search — options

• Category — All · Datasets · Services · Organizations
• Catalog — Local (this Endpoint) or Global (the federated NDP catalog)
• Organization filter, and Yours (only items you own)
• On your own items: Publish and Delete actions (role/ownership-gated)

The "+ New" menu

Available to writers and admins. Six creation flows, in two groups:

"+ New" — Organization

A top-level group that owns datasets and services.

• name — Unique slug used as the organization ID and in URLs (lowercase letters, digits, _, -).
  Example: atmospheric-research
• title — Human-readable display title shown across the UI.
  Example: Atmospheric Research Lab
• description (opt.) — Free-text description shown on the organization page.
  Example: Group publishing radar and atmospheric datasets for research.

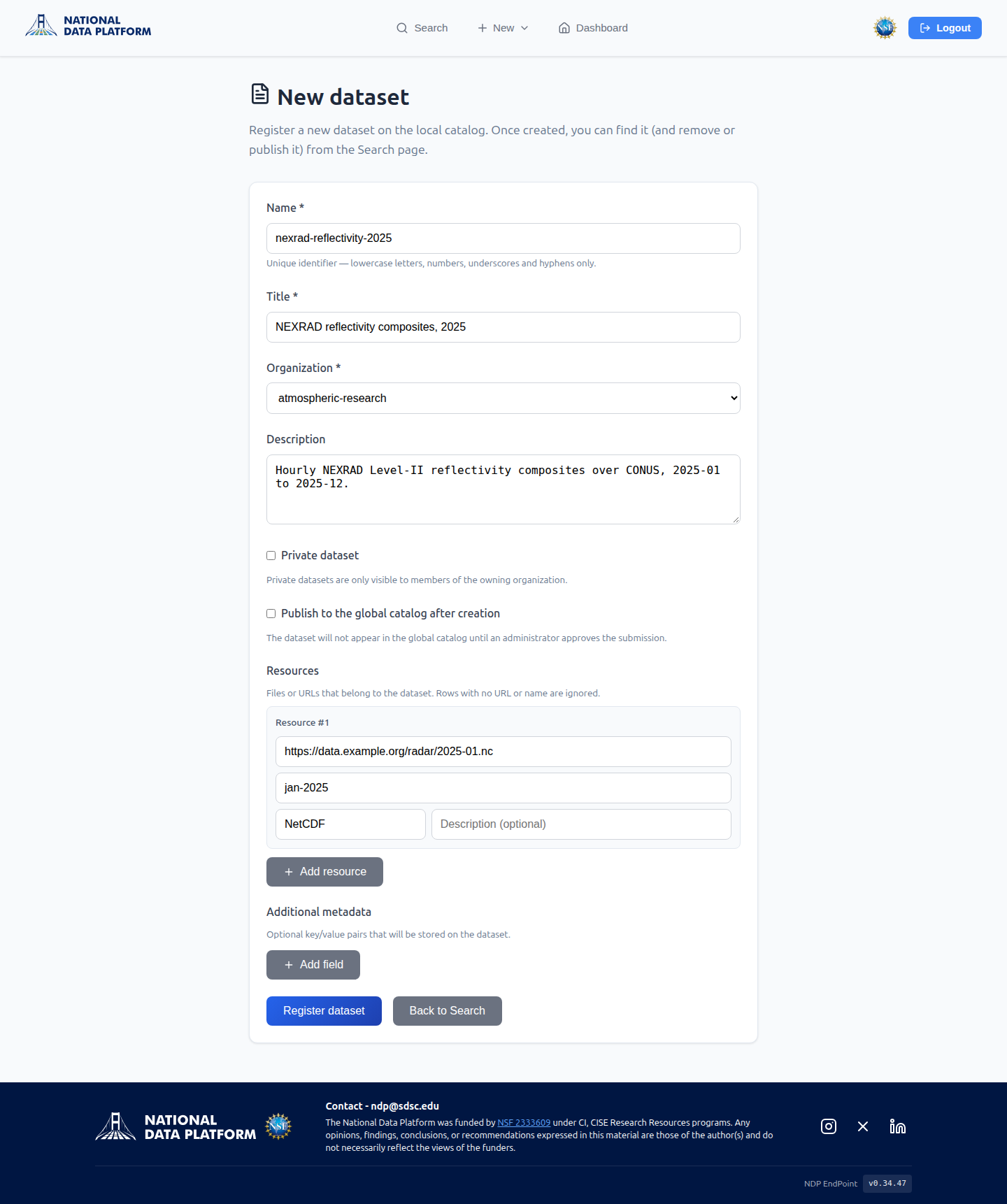

"+ New" — Dataset (required)

A logical container of related resources, owned by an organization.

• name — Unique slug for the dataset; appears in the URL (lowercase, alphanumeric, _, -).
  Example: nexrad-reflectivity-2025
• title — Human-readable title displayed on the dataset page.
  Example: NEXRAD reflectivity composites, 2025
• owner_org — ID of the organization that owns this dataset (must already exist).
  Example: atmospheric-research

"+ New" — Dataset (optional, 1/2)

Describe the dataset and make it findable.

• notes — Longer description / notes shown on the dataset page.
  Example: Hourly NEXRAD Level-II reflectivity composites over CONUS, 2025-01 to 2025-12.
• tags — Short keywords used to categorize and search.
  Example: ["radar", "nexrad", "reflectivity", "2025"]
• groups — Catalog groups (collections of datasets) the dataset belongs to.
  Example: ["weather", "remote-sensing"]
• license_id — License identifier (CKAN license slug).
  Example: cc-by
• version — Free-text version label.
  Example: v1.2.0

"+ New" — Dataset (optional, 2/2)

Extra metadata, embedded resources and visibility.

• extras — Free-form metadata as key/value pairs.
  Example: {"region": "CONUS", "instrument": "NEXRAD"}
• resources — Resources attached at creation (each {url, name, format?, …}).
  Example: [{"url": "https://data.example.org/radar/2025-01.nc", "name": "jan-2025", "format": "NetCDF"}]
• private (default false) — Whether the dataset is private (only visible to its org).
  Example: false

"+ New" — Service (required)

A network-accessible service (REST API, web app, etc.) registered under the services org.

• service_name — Unique service slug (1–100 chars).
  Example: radar-stats-api
• service_title — Display title (1–200 chars).
  Example: Radar Statistics API
• owner_org — Organization ID; must be services (all services live there).
  Example: services
• service_url — URL where the service is reachable (http(s)://…).
  Example: https://api.atmospheric-research.org/radar/stats

"+ New" — Service — service_type (optional)

What kind of service this is — used by the UI to label and filter.
The UI offers three canonical options plus a free-text fallback (≤ 50 chars).

• API — programmatic interface (REST/HTTP, GraphQL, gRPC…) called by code.
  Example: API
• UI — human-facing interface (web app, dashboard, viewer…) opened in a browser.
  Example: UI
• Trigger — event source / scheduled job (webhook, cron, producer…) that runs on its own.
  Example: Trigger
• …or any custom free-text value when none of the above applies.

"+ New" — Service (other optional)

Round out the service entry.

• notes — Description or additional notes.
  Example: RESTful API exposing aggregated reflectivity statistics from the NEXRAD datasets.
• health_check_url — URL of a health endpoint (http(s)://…) used for liveness checks.
  Example: https://api.atmospheric-research.org/radar/stats/health
• documentation_url — URL to the service documentation.
  Example: https://docs.atmospheric-research.org/radar-stats
• extras — Free-form metadata as key/value pairs.
  Example: {"version": "2.1.0", "environment": "production"}

"+ New" — URL resource (required)

A link to a file or service registered as a resource of a dataset.

• resource_name — Unique slug for the resource (lowercase, alphanumeric, _, -).
  Example: radar-jan-2025
• resource_title — Display title.
  Example: Radar reflectivity — January 2025
• owner_org — Organization that owns the resource.
  Example: atmospheric-research
• resource_url — URL of the file or service (must start with http(s)://).
  Example: https://data.example.org/nexrad/2025-01.nc

"+ New" — URL resource (file_type & processing)

Help the catalog interpret the content of the URL.

• file_type — stream, CSV, TXT, JSON, NetCDF, or a custom value.
  Example: CSV
• processing (type-specific) — how to read the file:
  • CSV: {"delimiter": ",", "header_line": 1, "start_line": 2}
  • JSON: {"data_key": "results"}
  • NetCDF: {"group": "/radar"}

"+ New" — URL resource (other optional)

• mapping — Field mapping: which fields to expose and how to rename them.
  Example: {"refl": "reflectivity_dBZ", "ts": "timestamp"}
• notes — Additional notes about the resource.
  Example: Hourly NetCDF files; missing values flagged with -9999.
• extras — Free-form metadata as key/value pairs.
  Example: {"region": "CONUS", "cadence": "1h"}

"+ New" — S3 resource (identification)

An object in S3-compatible storage registered as a resource.

• resource_name — Unique slug (lowercase, alphanumeric, _, -).
  Example: radar-archive-2025
• resource_title — Display title.
  Example: NEXRAD radar archive, 2025
• owner_org — Organization ID that owns the resource.
  Example: atmospheric-research

"+ New" — S3 resource (S3 details)

• resource_s3 — S3 URL of the object (s3://bucket/path, or http(s)://…).
  Example: s3://nexrad-archive/2025/
• notes (required; may be empty) — Notes about the resource.
  Example: Annual archive of NEXRAD Level-II composites, partitioned by month.
• extras (opt.) — Free-form metadata as key/value pairs.
  Example: {"format": "NetCDF", "size_GB": 480}

"+ New" — Kafka topic (required)

A streaming data flow registered as a system dataset.

• dataset_name — Unique slug for the dataset entry.
  Example: nexrad-live
• dataset_title — Display title.
  Example: NEXRAD radar — live stream
• owner_org — Organization that owns the dataset.
  Example: atmospheric-research
• dataset_description — Description of the stream.
  Example: Live JSON feed of NEXRAD radar volume scans, ~5 min cadence.

"+ New" — Kafka topic (broker)

Point at the broker and the topic.

• kafka_topic — Kafka topic name.
  Example: nexrad.live
• kafka_host — Kafka broker host.
  Example: kafka.atmospheric-research.org
• kafka_port — Broker port (1–65535).
  Example: 9092

"+ New" — Kafka topic (options)

Shape the messages.

• mapping (opt.) — Field mapping (select/rename fields to send).
  Example: {"refl": "reflectivity_dBZ", "ts": "timestamp"}
• processing (opt.) — Processing config.
  Example: {"data_key": "data", "info_key": "metadata"}
• extras (opt.) — Free-form metadata.
  Example: {"avg_msgs_per_min": 12, "schema": "https://schemas.example.org/radar.json"}

Storage management (S3) — writers only

Manage buckets and objects in S3-compatible storage from the UI.

Requires:

• S3_ENABLED=True in .env, plus S3_ENDPOINT, S3_ACCESS_KEY, S3_SECRET_KEY (and optionally S3_SECURE, S3_REGION).
• Writer or admin role — the menu entry is hidden otherwise; the API returns 403 to read-only users.

S3 Management — buckets

A list view (Bucket name · Created · Actions) with a filter to find buckets quickly.

• Create a bucket (name + region).
• List all buckets with creation dates.
• Search / filter by name.
• View bucket information and metadata.
• Delete a bucket (must be empty — no objects).
• Refresh the list.

S3 Management — objects

Select a bucket → manage its objects (Name · Size · Last modified · Type).

• Upload files via drag-and-drop or the file picker.
• List objects in the bucket.
• Search by prefix / path.
• Download an object to your computer.
• View detailed object metadata.
• Generate a presigned URL — a temporary, authenticated link for secure sharing.
• Delete individual objects.

Step 4 — Automate with Python

The same operations, from code

The ndp-ep library

Every web-app operation is also available from code — suitable for automation
and bulk loading.

pip install ndp-ep

Intended for researchers and teams that load data programmatically.

Example: in a few lines

from ndp_ep import APIClient

# 1. Connect to the Endpoint with your token
# (https assumes a real domain + TLS cert; on a bare IP/localhost use http://)
client = APIClient(base_url="https://my-endpoint/ep-api", token="…")

# 2. List organizations
print(client.list_organizations())

# 3. Create a dataset and search for it
client.create_dataset(name="measurements-2026", owner_org="my-org")
print(client.search_datasets("measurements"))

Web and code: a unified interface

   Web (click)   ─┐
                  ├─►  the SAME Endpoint  ─►  the SAME catalog
   Python (code) ─┘

The web interface and the library target the same Endpoint: identical data and permissions.

Step 5 — Federation

The data is discovered elsewhere

The Endpoint registers

Each Endpoint registers with Federation. The central registry then tracks its
status and metrics.

Health and metrics

The federation web app reports which Endpoints are online, since when, and
their activity.

What the Endpoint reports

Every METRICS_INTERVAL_SECONDS (default 55 min) — and only when IS_PUBLIC=True — the Endpoint posts a JSON payload to METRICS_ENDPOINT:

Identity & version

• organization, ep_name, version (EP API version), public_ip, timestamp.

Catalog activity

• num_datasets, num_services, services (list of service titles).

Host load

• cpu (%), memory (used/total GB), disk (used/total GB).

What the Endpoint reports — infrastructure flags

Which features this Endpoint exposes — booleans, plus a few details when enabled.

• jupyterlab_enabled (if true: jupyterlab_url)
• kafka_enabled (if true: kafka_host, kafka_port)
• s3_enabled
• pre_ckan_enabled

No tokens, user data or dataset content are sent — only counts, infrastructure flags and host load. Federation drops the report if it cannot reach the endpoint, so the EP keeps working when the federation is down.

Bonus — NetBird

NetBird — open-source mesh VPN built on WireGuard.

• Each machine joins a private virtual network and gets a stable private IP.
• Traffic flows directly and encrypted between authorized peers; access is restricted by policy.
• No public ports are exposed for the services themselves.

Why it matters for NDP: when the Endpoint and the platform components run on different machines, NetBird connects them over a single private overlay — no per-service firewall opening.

Resources

• Endpoint (web): …/ep-api/ui/ · API: …/ep-api/docs
• Federation: …:8020/ui/
• Affinities: …:3000
• Python library: pip install ndp-ep · PyPI: ndp-ep
• Repos: ep-api, ndp-federation, ndp-affinities, ndp-keycloak-aai-old, ndp-ep-py, netbird-ndp

Appendix

Obtaining the EP_UUID — Affinities web app

In the Affinities web app (http://localhost:3000, or your Affinities URL):
Endpoints → Add Endpoint, fill the form (Kind = ndp-ep, URL, optional
Metadata), then Save. The new row's UID is your AFFINITIES_EP_UUID.

Obtaining the EP_UUID — Affinities API

Via the Affinities API (http://localhost:8000, Swagger at /docs):

# list endpoints and copy your uid
curl http://localhost:8000/ep

# or register this endpoint; the response includes "uid"
curl -X POST http://localhost:8000/ep -H 'Content-Type: application/json' \
  -d '{"kind":"ndp-ep","url":"https://<your-ndp-ep>","metadata":{"name":"My EP"}}'

The returned uid is your AFFINITIES_EP_UUID.

Creating a user — Keycloak

In the Keycloak admin console, realm NDP:

1. Users → Add user — set Username and the required profile fields (email, first/last name), then Create.
2. Open the user → Credentials → Set password — turn Temporary off, then Save.

Assigning groups & roles — AAI API

After the user exists in Keycloak, assign groups/roles via the AAI API
(the caller must already be an admin):

# authenticate as an admin
TOKEN=$(curl -s -X POST "$AAI/user/login" -H 'Content-Type: application/json' \
  -d '{"username":"<admin>","password":"<pass>"}' | jq -r .access_token)

# join the EP group (assigned the viewer role automatically)
curl -s -X POST "$AAI/group/add-user" -H "Authorization: Bearer $TOKEN" \
  -H 'Content-Type: application/json' \
  -d '{"group_name":"<EP_UUID>","username":"<user>"}'

Assigning groups & roles — AAI API (cont.)

Upgrade the tier (bare name: viewer | writer | admin):

curl -s -X POST "$AAI/role/assign" -H "Authorization: Bearer $TOKEN" \
  -H 'Content-Type: application/json' \
  -d '{"groupName":"<EP_UUID>","roleName":"writer","username":"<user>"}'

First admin exception: assign ndp_admin directly in Keycloak — no admin
exists yet to call this API. The user must re-login for new roles to take effect.

Tokens stored at NDP-managed onboarding

When the Endpoint is installed via the nationaldataplatform.com registration
(NDP infrastructure case), the onboarding process also stores the access tokens
for the various catalogs (CKAN sysadmin token, Pre-CKAN API key, etc.) on the
host — typically in each component's .env and a summary user_info.env — so
the Endpoint can read and write to them without manual token setup.
